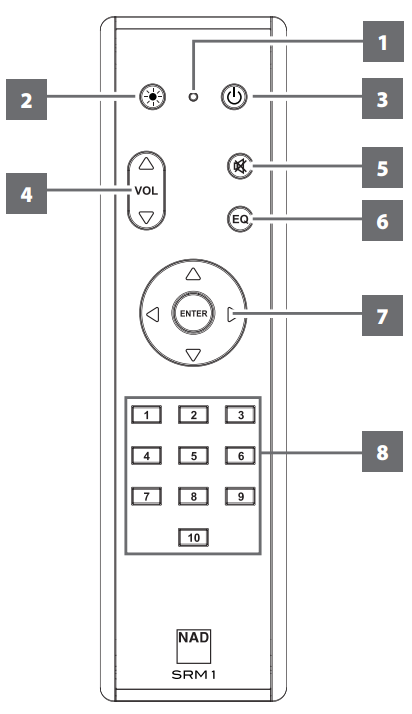

| 1 |
LED indicator |
Blinks whenever a command is sent. |
| 2 |
Status Indicator Brightness |
Adjust the brightness level of the NAD logo (Status Indicator). |
| 3 |
Power Mode Switch |
Toggle between low power standby mode (no display, NAD logo lit) and operating mode. |
| 4 |
Volume Control |
Increase or decrease the volume level. |
| 5 |
Audio Mute/Restore |
Temporarily mute the audio. Press again or adjust the volume to restore the audio. |
| 6 |
Dirac Filter Toggle |
Switch between saved Dirac Filter settings. |
| 7 |
△/+ and -/▽ |
User-defined functions that can be assigned via IR Learning. |
| ▷ | Skip to the next song/file. | |
| ◁ | Go to the beginning or the previous song/file. | |
|
ENTER |
Start or pause playback. | |
| 8 |
Numbered Buttons (1 to 10) |
Select a preset number. |
