The ZR 7 is a discrete compact remote for controlling the Zone 2 feature of the M17 / T778. Irrespective of the main room/zone settings, the ZR 7 allows full separate control of the Zone 2 source selection among other applicable features.
The ZR 7 is a compact and discreet remote designed specifically for controlling the Zone 2 feature of the NAD M17 / M17 V2 / M17 V2i / T778. It allows independent control over the Zone 2 source selection and other relevant features, regardless of the settings in the main room or zone.

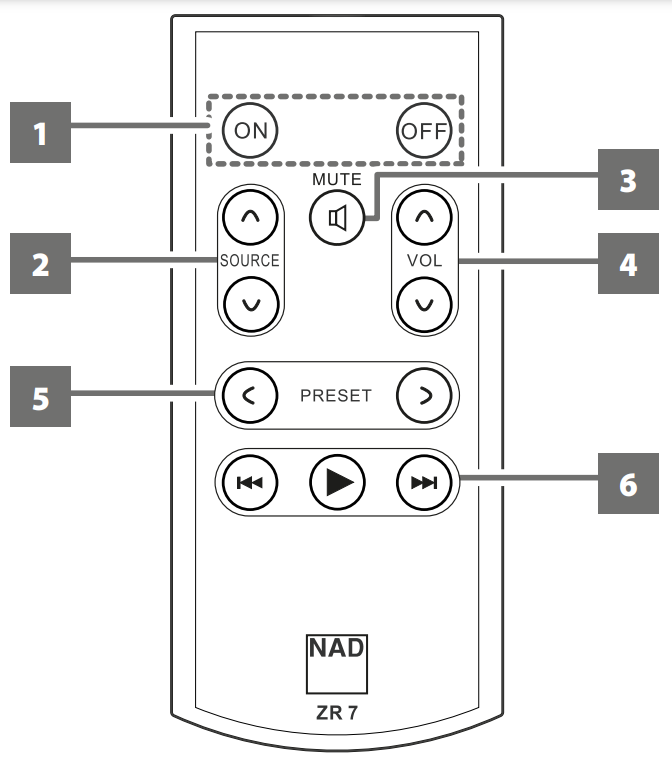

| 1 |
ON/OFF |
Turn Zone 2 on or off. |
| 2 | SOURCE [˄/˅] |
Select the active input on the NAD M17/T778 models to be sent to the Zone 2 output port on the rear panel. |
| 3 |
MUTE |
Temporarily mute or restore the volume level in Zone 2. |
|
4 |
VOLUME [˄/˅] |
Adjust the volume level of the selected Zone 2 source, provided the VOLUME setting in ZONE 2 CONTROLS is set to VARIABLE. |
| 5 |
PRESET [˂/˃] |
Navigate through stored radio presets. This control is functional only if the selected Zone is set to "TUNER" and the active tuner section has stored presets. Note that this control does not apply to the M17/T778 models. |
| 6 | The following CD Player Zone buttons control a compatible CD player, which must be powered on with a disc loaded: | |
| SKIP [⏮] | Go to the beginning of a track/file or the previous track/file. | |
| SKIP [⏭] | Go to the next track/file. | |
| [⏵] | Start playback. | |
Note: The ZR 7 remote control is dedicated to managing Zone 2 applications only. For Zones 3 and 4, configuration and management can be done via the Zone OSD menu using the front panel navigation keys or the corresponding keys on the HTRM 2 / HTR8 remote control. Additionally, the 'CUSTOM-DEVICE SELECTOR' button on the HTRM 2 / HTR8 remote control is preset with Zone 2 control codes.
