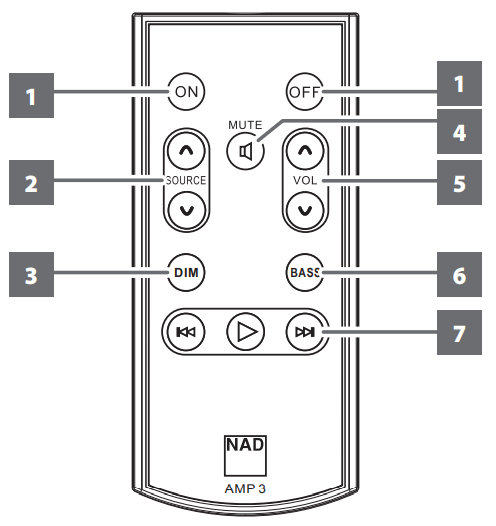

| 1 |
ON |
Power up the unit from Standby mode to operating mode. |
| OFF | Switch the unit to Standby mode | |
| 2 | SOURCE [˄/˅] | Select through source input selections. |
| 3 | DIM | Toggle to select display brightness level – dim, bright, or display turned off. |
| 4 | MUTE | Audio is temporarily switched off or restored. Restore audio by pressing MUTE again, VOL [˄/˅], or rotating the VOLUME knob. |
| 5 | VOLUME [˄/˅] | Increase or decrease loudness level. |
| 6 | BASS | Toggle to select BASS EQ, HP 120Hz, HP 80Hz, or HP 40Hz. |
| Bass EQ boosts overall bass response by at least 6 dB. | ||
| HP 120Hz, HP 80Hz, or HP 40Hz attenuates signal below the indicated cutoff frequency and allows higher frequencies to pass through. | ||
| Press and hold the BASS button until BT ON (Bluetooth discoverable) or BT OFF (Bluetooth invisible) is shown in the display. | ||
| 7 | BLUETOOTH CONTROLS (applicable at BT Receive or Transmit mode) | |
| ⏵ | Press and hold the [⏵] button to toggle between Bluetooth RECEIVE and TRANSMIT modes. | |
| ⏮/⏭ | Use it to select connectable Bluetooth devices in Bluetooth TRANSMIT mode. | |
