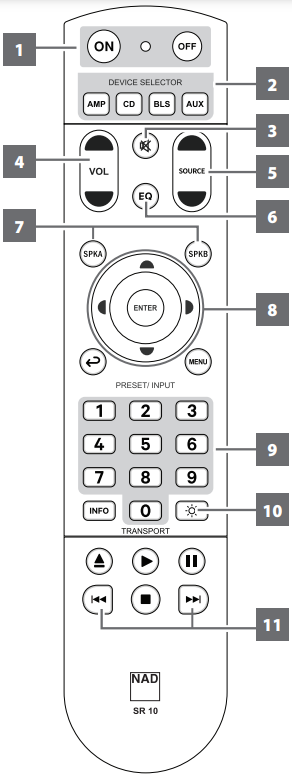

The SR 10 remote control handset manages the key functions of the C 389 and can control up to four devices. It operates at a range of up to 23 feet (7 meters). To power the remote, insert two AA batteries into the compartment on the back, ensuring they are correctly oriented as indicated on the base of the compartment.
Notes:
- Function buttons on the SR 10 that are not discussed, designated, or highlighted are not applicable or functional for the specific device.
- The LED indicator between the ON and OFF buttons will flash blue whenever a control button is pressed.
To initiate the following C 389 remote control commands, select AMP from the DEVICE SELECTOR buttons:
| 1 |
ON/OFF |
The SR 10 remote has separate ON and OFF buttons. Press ON to switch the C 389 from Standby to operating mode. Press OFF to switch to Standby mode. | ||||||||||||||||
| 2 | DEVICE SELECTOR |
A Device Selector button determines which component the SR 10 will command; it does not perform any function on the C 389. Press the desired Device Selector button to direct the applicable buttons to a “page” of commands relevant to the selected device. After selecting a Device, press the corresponding SR 10 control buttons applicable to the selected Device. |
||||||||||||||||
| 3 |
MUTE |
Press the MUTE button to temporarily switch off the sound to the speakers and headphones. MUTE mode is indicated by “Mute” shown on the front panel display. Press MUTE again to restore sound. Adjusting the volume level via the SR 10 or the front panel volume knob will automatically release the mute function. |
||||||||||||||||
| 4 |
VOL [⯊/⯋] |
Press [⯊/⯋] to increase or decrease the volume level. Release the button when the desired level is reached. |
||||||||||||||||
| 5 |
SOURCE [⯊/⯋] |
Toggle through Source input selections. If the optional MDC2 BluOS D module is installed, the Source selections will include sources incorporated with the MDC2 BluOS D module. |
||||||||||||||||
| 6 |
EQ |
With the optional MDC2 BluOS D installed and Dirac Live calibration completed, use EQ to select available saved Dirac Filter settings. |
||||||||||||||||
| 7 |
SPK A, SPK B |
The C 389 has two sets of SPEAKERS connections that are identical in function (parallel connection). Toggle either SPK A or SPK B to switch ON or OFF SPEAKERS output simultaneously. |
||||||||||||||||
| 8 |
NAVIGATION AND ENTER BUTTONS |
Use [⯊/⯋/◖/◗] to navigate up, down, left, or right through menu options or selections. Press ENTER to complete a selection, procedure, sequence, or other applicable functions. |
||||||||||||||||
| 9 |
SOURCE INPUT SELECTOR *a |
The numeric buttons allow for direct selection of Source input. Press the corresponding number button to directly select a Source: | ||||||||||||||||
|
||||||||||||||||||
| 10 |
BRIGHTNESS |
Toggle to vary the brightness level of the front panel display - brighter, normal, or dimmer. |
||||||||||||||||
| 11 |
(Applicable only if the optional MDC2 BluOS D is installed) With the optional MDC2 BluOS D installed and while at BluOS Source, select: |
|||||||||||||||||
| SKIP [⏮] | Skip back to the beginning of the current song. | |||||||||||||||||
| SKIP [⏭] | Skip forward to the next song. | |||||||||||||||||
*a IMPORTANT (Applicable only if the optional MDC2 BluOS D is installed): There are up to nine Sources with discrete IR codes, mapped to the SR 10 remote control Source Input Selector buttons 1-9.
- When the optional MDC2 BluOS D module is installed, the chassis Bluetooth is disabled or becomes non-functional. In this configuration, the Source Input Selector button "9" is reassigned to "BluOS." The USB and Bluetooth sources incorporated in the MDC2 BluOS D are accessible via the BluOS Controller App.
- In the table below, when the MDC2 BluOS D module is installed and certain sources, such as Optical 2 and Phono, are disabled, the Source Input Selector button allocations adjust to display only the enabled sources. For instance, Coaxial 1 moves to position "2", Coaxial 2 shifts to "3", Line 1 changes to "4", and so forth.
You have the flexibility to disable specific sources, with the expectation that the Source Input Selector buttons will be reassigned accordingly.
SR 10 CONTROL
BUTTON
(AMP MODE)CORRESPONDING SOURCE C 389 Default Settings MDC2 BluOS D
InstalledMDC2 BluOS D Installed with
some Sources disabled1 Optical 1 Optical 1 Optical 1 2 Optical 2
Optical 2
Coaxial 1
3 Coaxial 1 Coaxial 1 Coaxial 2 4
Coaxial 2 Coaxial 2 Line 1 5 Phono Phono Line 2 6 Line 1 Line 1 HDMI eARC 7 Line 2 Line 2 BluOS 8 HDMI eARC HDMI eARC Unassigned 9 Bluetooth BluOS Unassigned
