Notes:
- Function buttons on the SR 10 that are not discussed, designated, or highlighted are not applicable or functional for the specific device.
- The LED indicator between the ON and OFF buttons will flash blue whenever a control button is pressed.

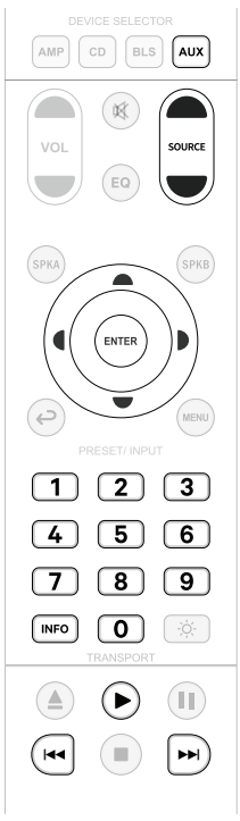

AUX PLAYER CONTROL (applicable to most NAD Tuners): Select AUX from the DEVICE SELECTOR buttons to access the following control functions. The AUX device is preset with NAD Tuner remote control codes.
| SOURCE [⯊/⯋] | Step up or down between AM or FM frequencies. |
| [⯊/⯋] | Step up or down between stored radio presets. |
| [◖/◗] | Step up or down between AM or FM frequencies. |
| ENTER | In AM/FM mode, toggle to select Preset or Tune mode. In DAB mode, press and hold to check signal strength. |
| NUMERIC BUTTONS (1-9, 0) | Use these buttons to directly enter the frequency number of the required AM or FM station. |
| INFO | Toggle to display information about the current radio station and applicable media being played. Note that some radio stations may not support display information. |
| ⏵ | Toggle to select the AM, FM, DAB, or XM band (if applicable). |
| ⏮/⏭ | Step up or down between stored radio presets. |
