Overview of the HTR8
- Controls up to 8 devices.
- Learns up to 360 commands.
- Records up to 52 macros with a maximum of 64 commands each.
- Configurable punch-through.
- Key illumination with a programmable timeout.
- Upgradable.
- Contains a pre-programmed library of NAD remote codes.
The NAD HTR 8 is ready to operate the T778 right out of the box, but it is essentially eight remotes in one. Each of the 8 DEVICE SELECTOR keys at the top of the handset can call up a new "page" of remote control codes to be transmitted by the remaining keys. You can "teach" codes from any infrared remote-controlled component, regardless of brand, to any or all of these.
Typically, you would teach the codes from your DVD player to the [DVD] DEVICE SELECTOR “page,” your television’s codes to the [TV] “page,” and so on, but there is no required scheme. You can load any commands to any key on any page. Learn more about copying codes from other remotes.
The HTR 8 comes pre-programmed with a full complement of T 778 commands on its [AMP] DEVICE SELECTOR page, as well as library commands to operate most NAD-brand DVD, BD, CD, or TUNER components on the corresponding DEVICE SELECTOR “pages.” These default commands are permanent: Even if you teach the HTR 8 new commands, the underlying library commands remain and can be easily recalled if you add an NAD component to your system later. Learn more about how to delete commands on the HTR8 remote.

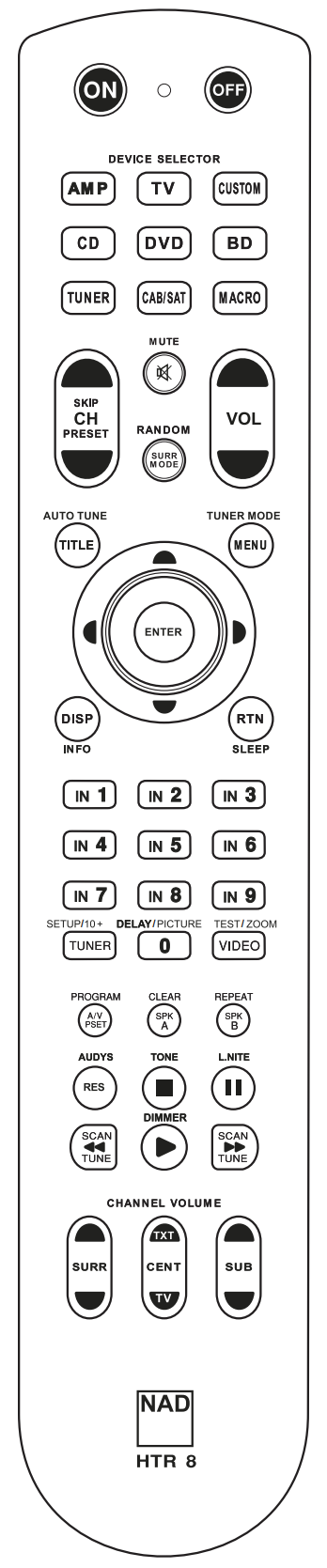

Getting Familiar with the HTR8
The HTR 8 is divided into two main sections.
Device Selector Key: The top section has eight DEVICE SELECTOR keys—[AMP], [DVD], [TV], and so on—which set the handset’s remaining keys to a “page” of commands to control a particular component. A DEVICE SELECTOR key determines only what component the HTR 8 will command; it does not perform any function on the component.
Function Key: All the remaining keys are function keys that can “learn” control codes from virtually any infrared remote controller, allowing you to teach the codes of your equipment, regardless of brand, to the HTR 8.
However, the HTR 8 comes pre-programmed to operate the T 778. All the function keys on the [AMP] Device Selector "page" are set to perform T 778 functions. Additionally, the HTR 8 can control various other NAD components from its [DVD], [CD], [BD], and [TUNER] pages.
It is important to note that some HTR 8 keys have different functions depending on the selected DEVICE SELECTOR "page." The color of the DEVICE SELECTOR key-labeling matches the labeling of the function keys. For instance, the black [AMP] DEVICE SELECTOR "page" corresponds to the black keys: when the [AMP] page is active, these keys control the amplifier or receiver inputs. Similarly, the purple [DVD] DEVICE SELECTOR "page" aligns with several purple labels, and so forth.
LEARN LED
Learn LED is located between HTR 8's ON and OFF buttons. Green, red, and amber indicate the remote's different status.
HTR 8 MODES
| Mode | Keys To Press (for 3 seconds) |
|
Device Key + RES Key |
|
Delete Mode: Delete commands layer by layer to restore the default library command on any key. |
Device Key + RTN Key |
| Macro Record: Automate multiple remote codes with a single keypress per DEVICE SELECTOR or function key. | MACRO Key + Function Key |
| Library Mode: Change HTR 8 code libraries to control NAD and other devices if defaults fail. | Device Key + A/V PSET Key |
| Back Light Timeout: Adjust HTR 8 key illumination duration | DISP Key + Digit Key |
|
Sleep Mode: Set up the automatic transition of the unit to Standby mode after a designated number of minutes. |
Refer to the Sleep Mode procedure. |
| Factory Reset: Reset HTR 8 to factory state. | Refer to the Factory Reset procedure. |
