Overview of the HTRM2
The NAD HTRM 2 is ready to operate the M17 right out of the box, but it is essentially eight remotes in one. Each of the 8 DEVICE SELECTOR keys at the top of the handset can call up a new "page" of remote control codes to be transmitted by the remaining keys. You can "teach" codes from any infrared remote-controlled component, regardless of brand, to any or all of these.
Typically, you would teach the codes from your BD player to the [BD] DEVICE SELECTOR “page,” your television’s codes to the [TV] “page,” and so on, but there is no required scheme. You can load any commands to any key on any page. Learn more about copying codes from other remotes.
The HTRM 2 comes pre-programmed with a full complement of M17 commands on its [AMP] DEVICE SELECTOR page, as well as library commands to operate most NAD-brand BD, CD, or DAC components on the corresponding DEVICE SELECTOR “pages.” These default commands are permanent: Even if you teach the HTRM 2 new commands, the underlying library commands remain and can be easily recalled if you add an NAD component to your system later. Learn more about how to delete commands on the HTRM 2 remote.

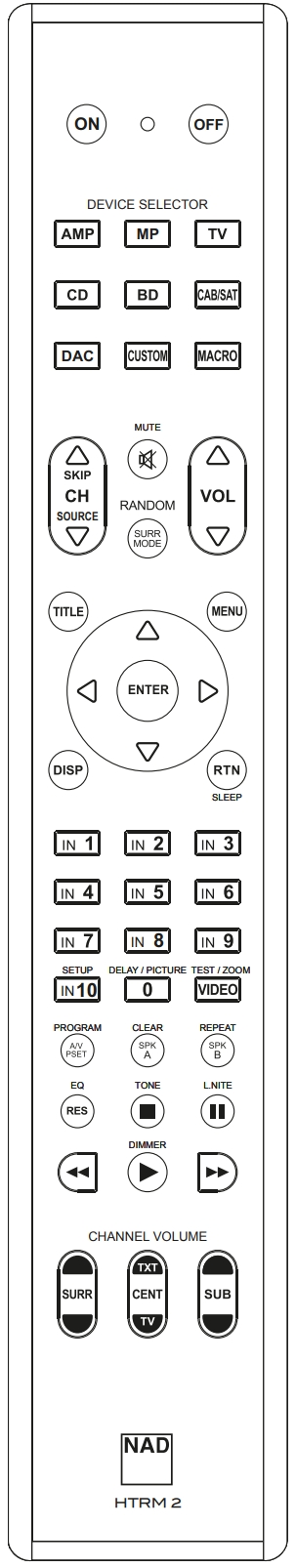

Getting Familiar with the HTRM 2
The HTRM 2 is divided into two main sections.
Device Selector Key: The top section has eight DEVICE SELECTOR keys—[AMP], [MP], [TV], and so on—which set the handset’s remaining keys to a “page” of commands to control a particular component. A DEVICE SELECTOR key determines only what component the HTRM 2 will command; it does not perform any function on the component.
Function Key: All the remaining keys are function keys that can “learn” control codes from virtually any infrared remote controller, allowing you to teach the codes of your equipment, regardless of brand, to the HTRM 2.
However, the HTRM 2 comes pre-programmed to operate the M17. All the function keys on the [AMP] Device Selector "page" are set to perform M17 functions. Additionally, the HTRM 2 can control various other NAD components from its [CD], [BD], [DAC], and [CUSTOM] pages.
It is important to note that some HTRM 2 keys have different functions depending on the selected DEVICE SELECTOR "page."
LEARN LED
Learn LED is located between HTRM 2's ON and OFF buttons. Green, red, and amber indicate the remote's different status.
HTRM 2 MODES
Mode | Keys To Press (for 3 seconds) |
|
Device Key + RES Key |
Delete Mode: Delete commands layer by layer to restore the default library command on any key. |
Device Key + RTN Key |
Macro Record: Automate multiple remote codes with a single keypress per DEVICE SELECTOR or function key. | MACRO Key + Function Key |
Library Mode: Change HTRM 2 code libraries to control NAD and other devices if defaults fail. | Device Key + A/V PSET Key |
Back Light Timeout: Adjust HTRM 2 key illumination duration | DISP Key + Digit Key |
Sleep Mode: Set up the automatic transition of the unit to Standby mode after a designated number of minutes. |
Refer to the Sleep Mode procedure. |
Factory Reset: Reset HTRM 2 to factory state. | Refer to the Factory Reset procedure. |
