MDC AM17 - Mounting Instructions

Updated

M17/M15-IG2018-01

IMPORTANT NOTES

  • Visit the MDC AM17 page at nadelectronics.com for a list of compatible NAD products that can integrate the MDC AM17 module.
  • The reference model used in this mounting instruction is M17 but also apply to an M15.
  • Power down and disconnect all power plugs to the below equipment before proceeding

INSTALL MDC AM 17

  • Use a compatible screw driver to loosen up and remove screws of current MDC board.

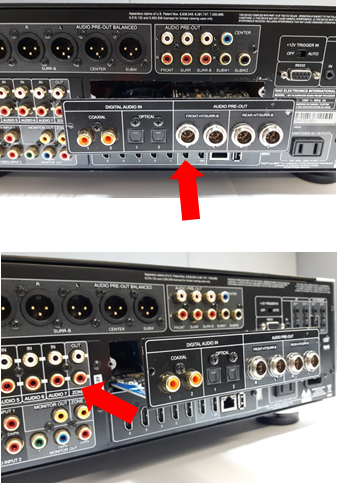

  • Carefully pry open the MDC board from the rear panel using a flat screw driver or similar tool and then slide out from the slot.

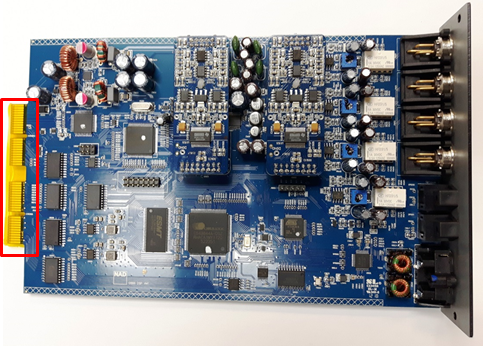

  • Unpack the AM17 module from its packaging. Remove the protective tape from the contact terminals.


  • Install AM17 by sliding the module through the rails and pushing all the way to the corresponding connectors. Make sure AM17 module is locked in.

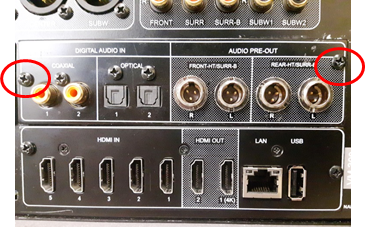

  • Use corresponding screws to fix into place the AM17 module.


  • After successful installation of AM17, ensure that the M17 software is updated.
