How do I adjust the Volume Limits in C658?

Updated

You can set the volume limits by adjusting the upper and lower limits of volume controls. Modifying the upper or lower volume limits of C658 provides more fidelity when adjusting the volume.

Volume limits can be adjusted in any of the following two methods:

Front Panel Display

SR9 Remote

 Front Panel
SR9_remote_navigation_button.png 093_NAD_Front panel Navigation button.png

Use the navigation [navigation_front_panel.png] or buttons [navigation_remote.png] to go through menu options and selections.

The middle round button is designated as the [ENTER] button.

  • Press [◡] to select a menu item.
  • Repeatedly press [left_right_arrow.png] to scroll through menu choices, options, or selections.
  • Press [◠] or [ENTER] to select or save the current selection or option and, at the same time, exit or return to the previous menu.

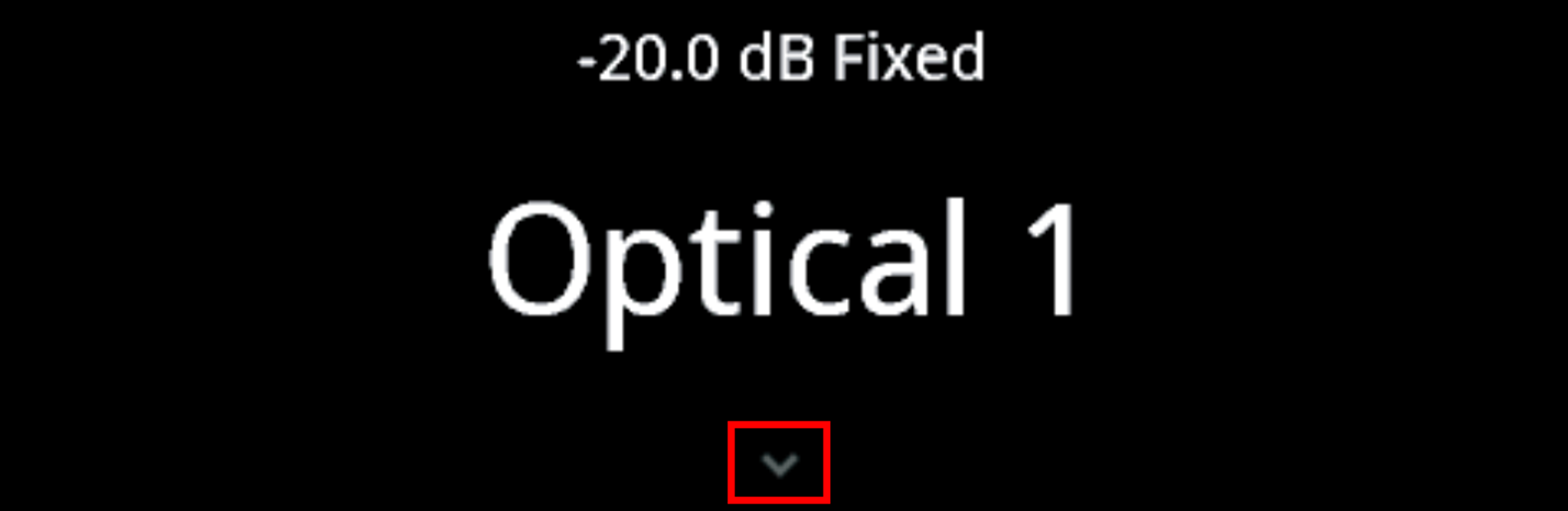

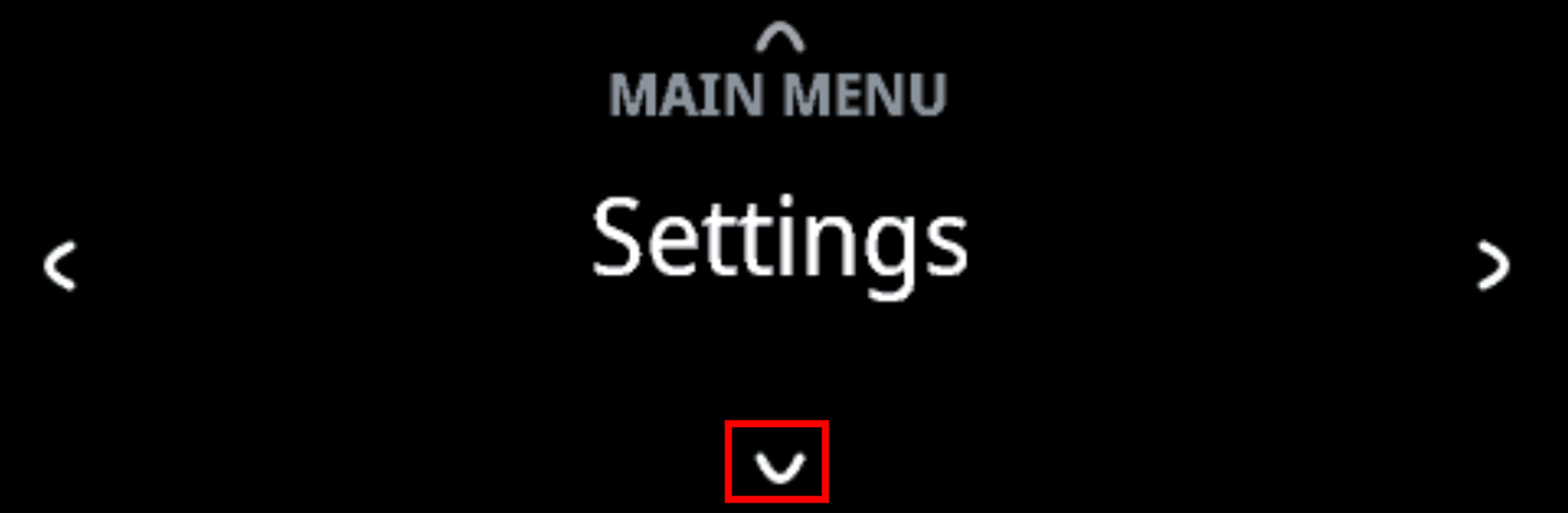

  1. In C658, press [◡] for the MAIN MENU – Settings options to appear on display.
  2. Press [◡] to navigate the Settings menu options.

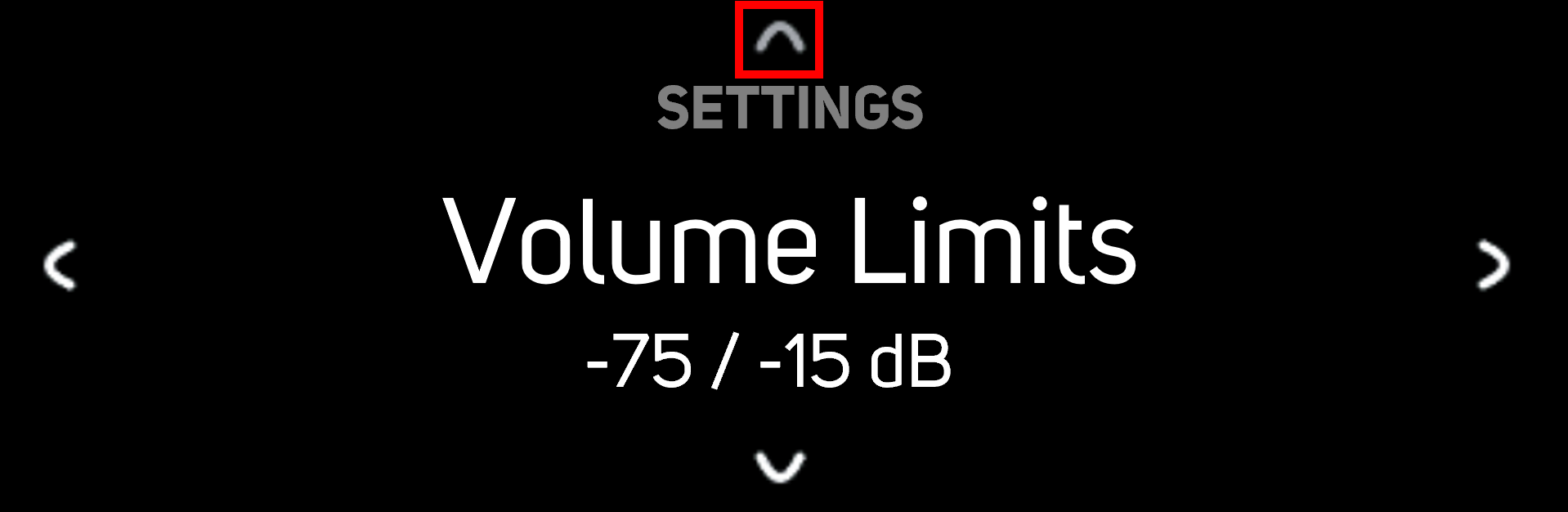

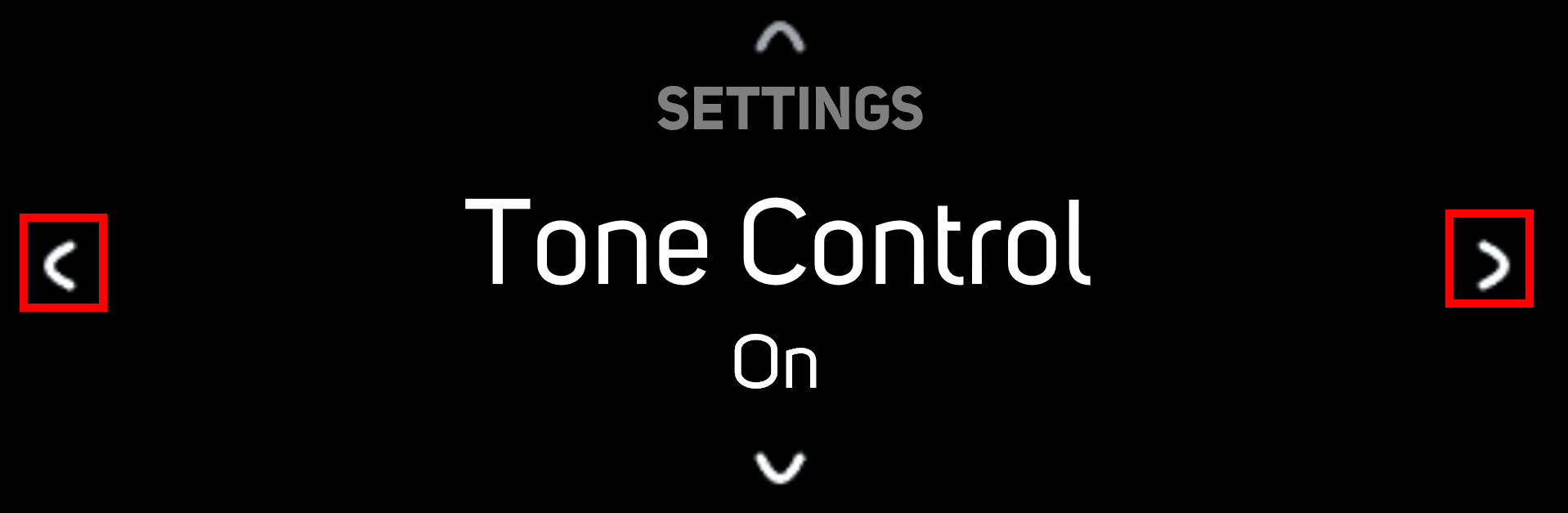

  3. Press [left_right_arrow.png] to navigate to the Volume Limits option.

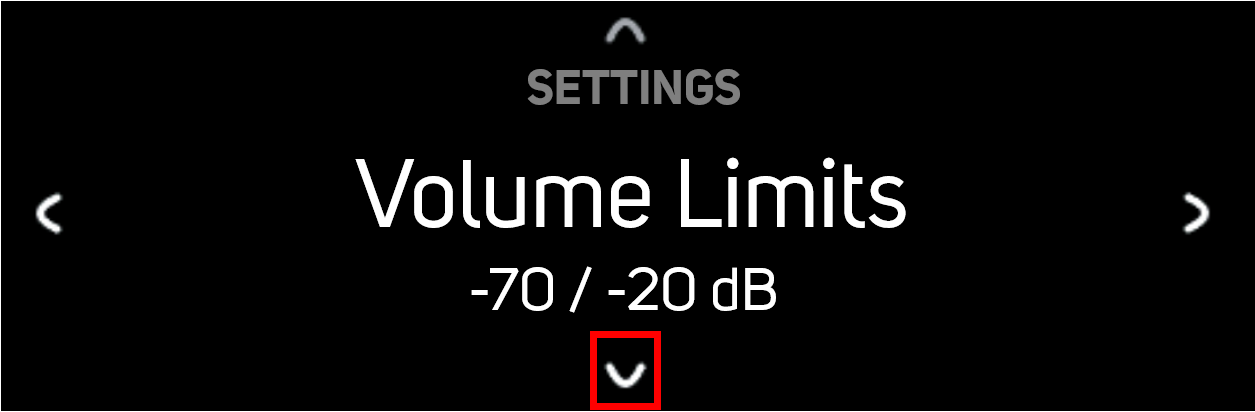

    The current Volume Limits are displayed below this option as (Minimum / Maximum) dB.
  4. Press [◡] to configure the current Volume Limits.

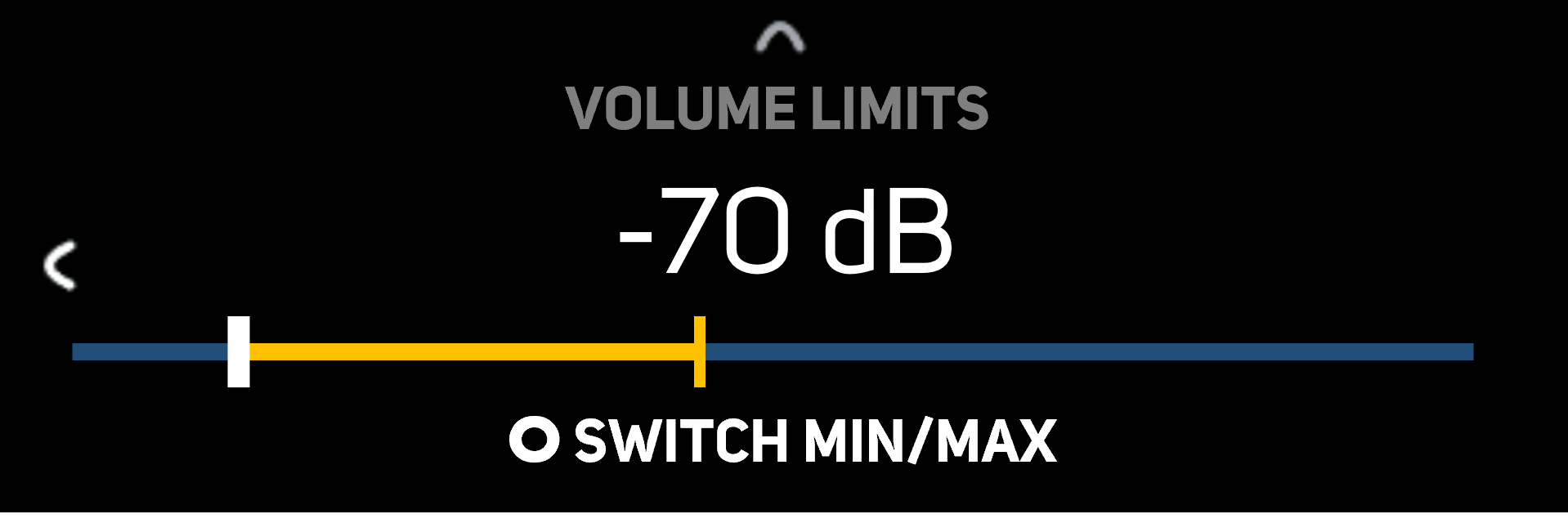

  5. The left handle of the slider indicates the Minimum Volume limit, and the right handle of the slider indicates the Maximum Volume limit.
    Note: The handle highlighted in White corresponds to the currently selected Volume Limit. Press the [ENTER] button to change between the left-handle and the right-handle selection.

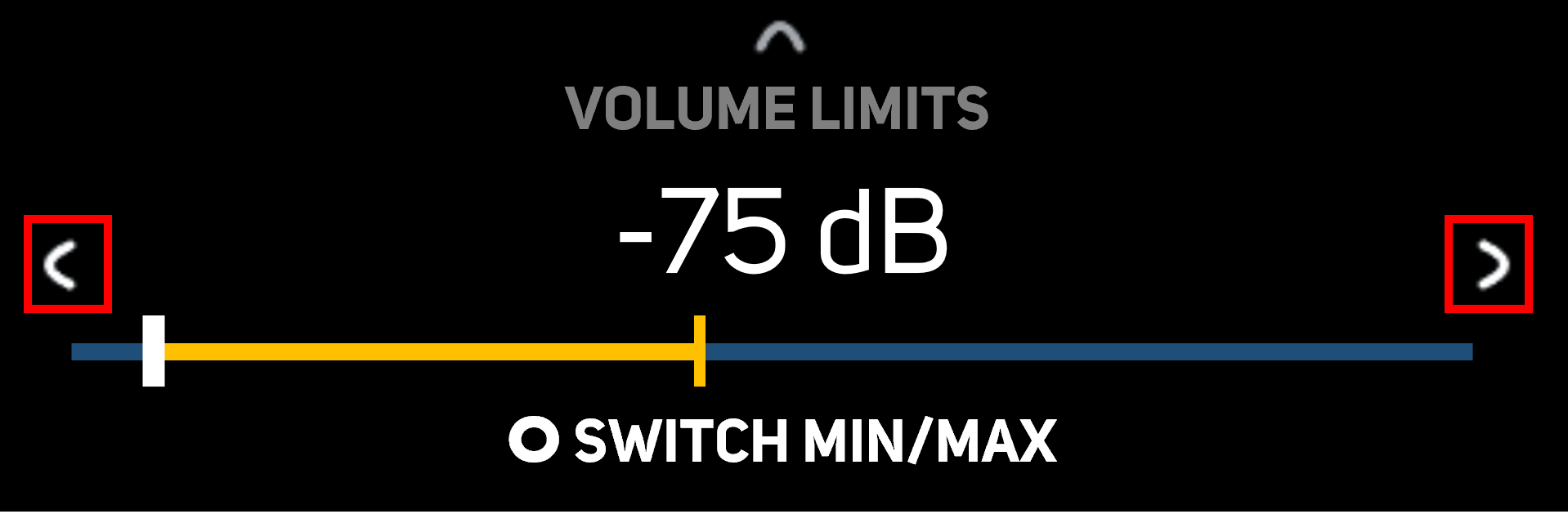

  6. Press [left_right_arrow.png] to adjust the left handle between -80 dB and -22 dB to configure the Minimum Volume limit*.

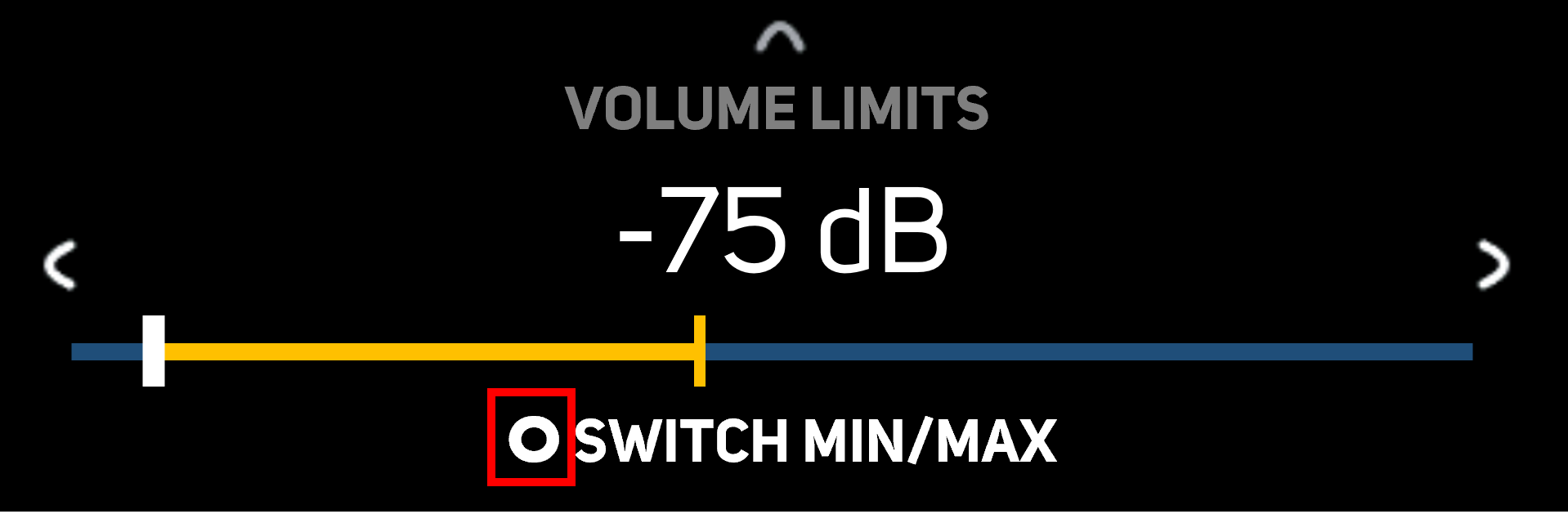

  7. Press the [ENTER] button to change between the left-handle and the right-handle selection.

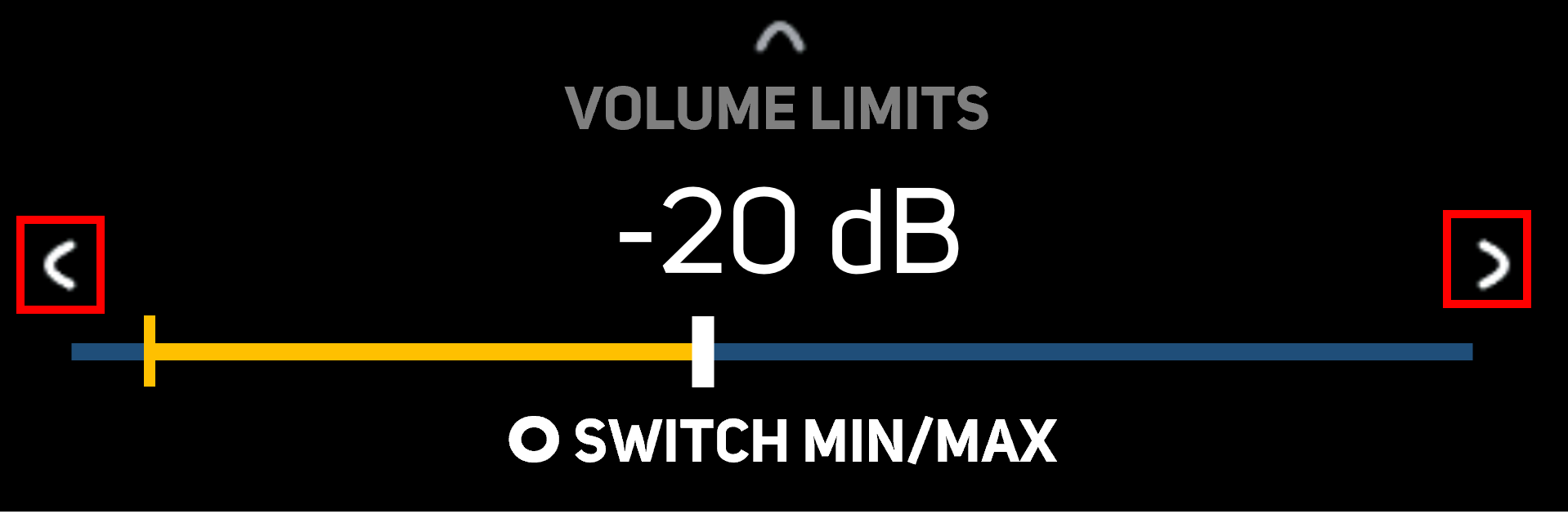

  8. With the right-handle selected, press [left_right_arrow.png] to adjust the right handle between -50 dB and +12 dB to configure the Maximum Volume limit*.

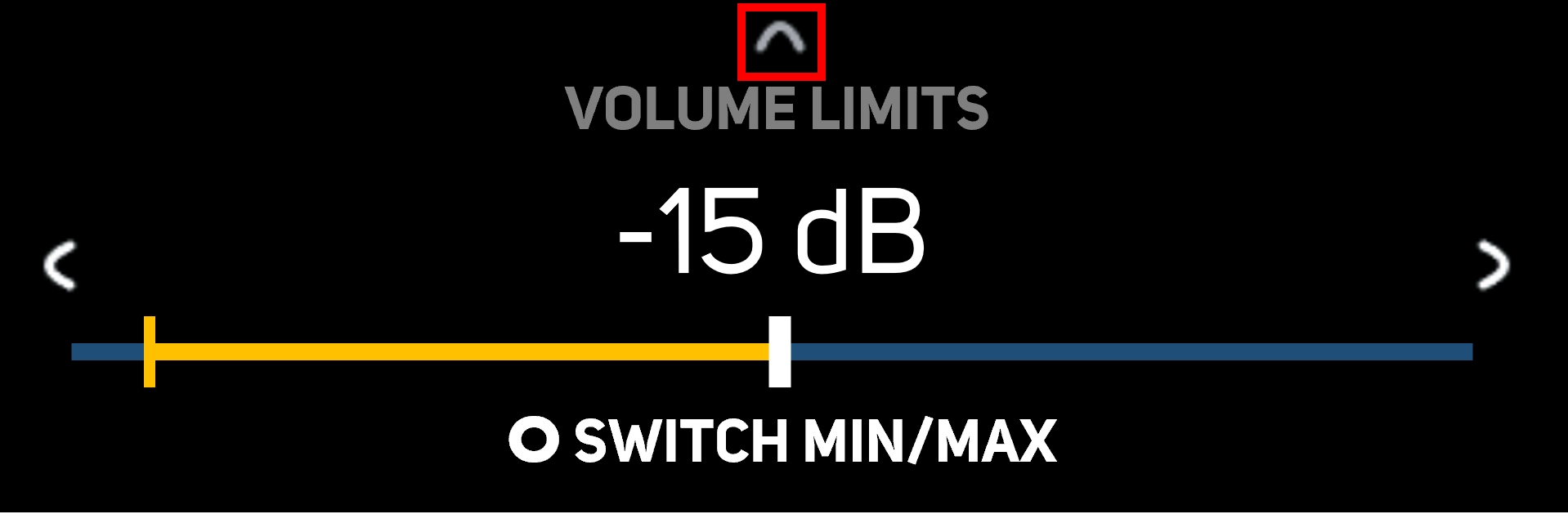

  9. Press [◠] multiple times to exit the Volume Control menu and return to the Source screen you accessed before Step 1.

BluOS Controller App

  1. In the BluOS Controller App, select C658 from the Player Drawer.
  2. On the left Navigation Drawer, select Settings > Audio > Volume limits (dB).

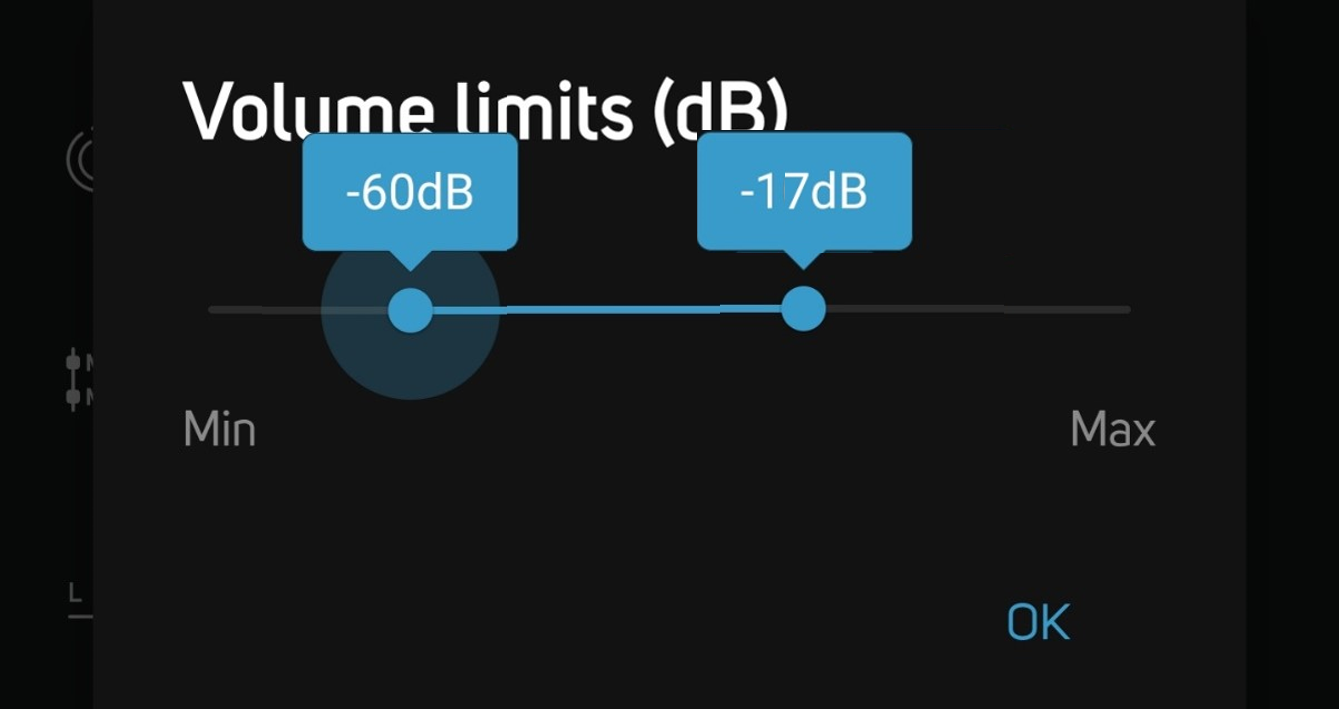

  3. Adjust the left handle of the slider between -80 dB and -22 dB to configure the Minimum Volume limit*.

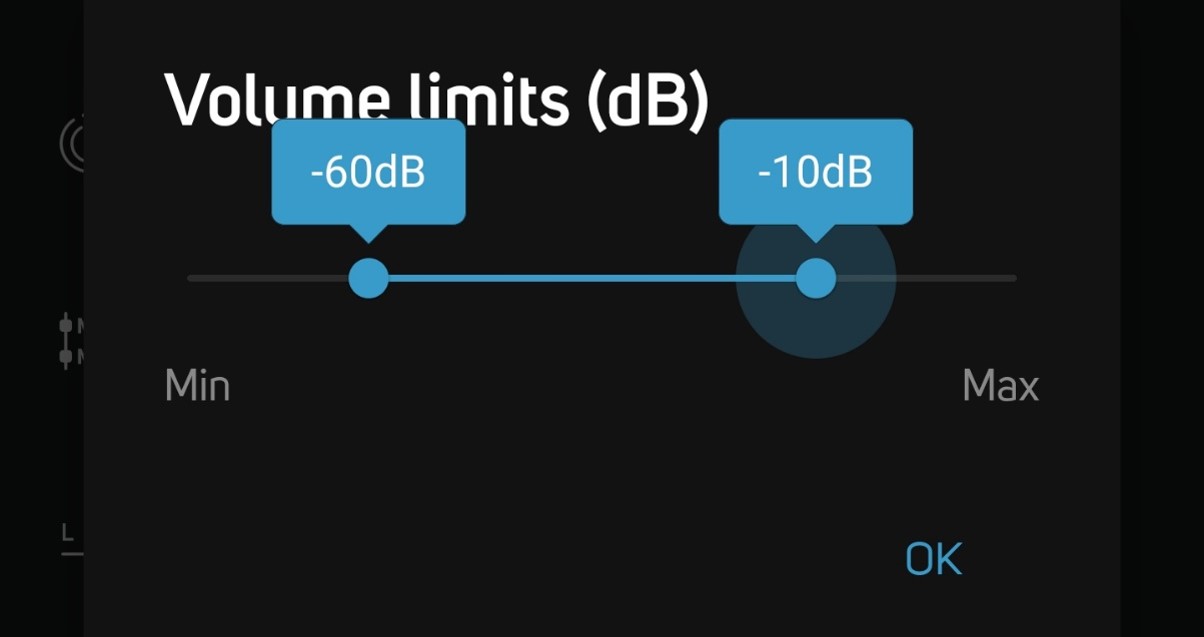

  4. Adjust the right handle of the slider between -50 dB and +12 dB to configure the Maximum Volume limit*.
  5. Select OK.

Note

*The C658 maintains a minimum span width of 30 dB between Maximum and Minimum volume limits. For example, the maximum volume limit configuration of -10dB limits the range of the minimum volume limit adjustment from -40 dB to -80 dB.

Conversely, a minimum volume limit configuration of -60dB limits the range of the maximum volume limit adjustment from -30 dB to +12 dB.
